RSD's ABEdit Software for the AB64 - Output Window

Output Window

The output window sets and monitors output levels. The window itself resembles an output channel on a standard mixing console.

Hovering the cursor over the fader track displays the actual attenuation in dB at that setting. Double-clicking makes the fader go to that level at the rate set by the Auto-Pan.

Link Fader Button This button links the faders it sits between. Red means the faders are linked. To link faders that are not next to each other, click the green LED Link LED at the bottom of the faders to be linked.

Auto-Pan Knob The Auto-Pan knob changes the fade time.

Click the knob and this window appears:

Auto-Pan Window

Hours, minutes, seconds, fractions of seconds, linear and exponential fades.

The M,S, and D stand for Mute, Solo, and Delay respectively. The number below D is milliseconds.

EQ Response Curve This icon displays the current EQ setting. Click it and the EQ window appears.

Camera Click the camera and the snapshot window appears.

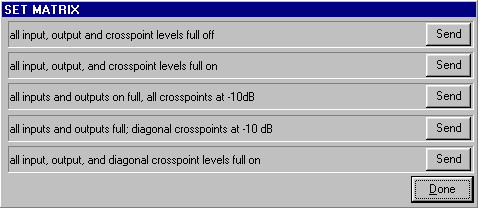

Click the Set Matrix button to open this window:

Set Matrix Window

This quickly sets the matrix to some commonly used configurations.
