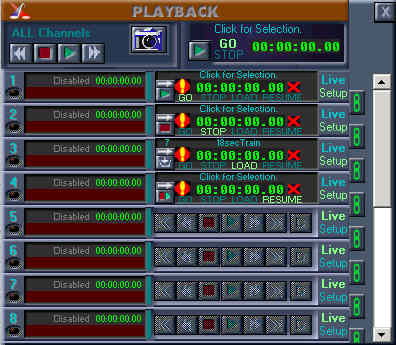

The Playback Window chooses and plays internal audio selections.
Use the Live mode to start, stop, and shuttle selections live.
Use the Setup mode to precisely set up multiple selection starting points.
Click Go, Stop, Load, or Resume; then Selection to display a choice of audio
selections. The icon at the left changes with each command.
This button copies Live data to the Setup mode. This is useful when you
start a particular selection at a specified time and you want to put this
information into a cue.
The number at left of each selection name is the selection number. The AudioBox
AB1616 holds over 8000 selections.
If you choose Bell 1 in channel 9,
the setup messages created by each button are:
AudioBox Device 0/Playback/GO/Selection 188.8.131.52/Channel 9
AudioBox Device 0/Playback/STOP/Selection 184.108.40.206/Channel 9
AudioBox Device 0/Playback/LOAD/Selection 220.127.116.11/Channel 9
AudioBox Device 0/Playback/RESUME/Selection 18.104.22.168/Channel 9
RESUME defines the point at which the track resumes playing whenever it STOPs for any reason. This is a powerful function which allows looping, vamping, insertion of chorus variations and autocompletion of selections at will, amongst many other possibilities.
'ALL Channels' Buttons (in the top left)
These buttons synchronously Fast Reverse, Stop, Go and Fast Forward all enabled channels simultaneously.
FAST REVERSE sends a load message for all channels that are stopped and
not disabled, with a time of 1 second behind the current playback location.
STOP sends a null STOP (a message with no selection number or time) which simply stops all currently playing selections.
GO sends a null GO (a message with no selection number or time) which simply starts all currently stopped selections.
FAST FORWARD sends a load message for all channels that are stopped and not disabled, with a time of 1 second ahead of the current playback location.
The Camera button opens a snapshot window which allows you to capture the current status of all channels that are enabled and stopped and put them into a snapshot or a cue along with any type of playback command.
