AudioBox AB1616

Digital Audio Playback, Signal Processing, Sound Placement & Spatialization

Virtual Matrix and Hard Disk Playback System

Themed Entertainment Association's THEA 2000 Award Recipient - 'Breakthrough Technology'

TCI Magazine's 1998 Award Winner - 'Sound Product of the Year'

• Signal Flow Diagram
• Rear Panel Layout
• Audio Specifications
• Show Control Specifications
• Architect & Engineer Specifications

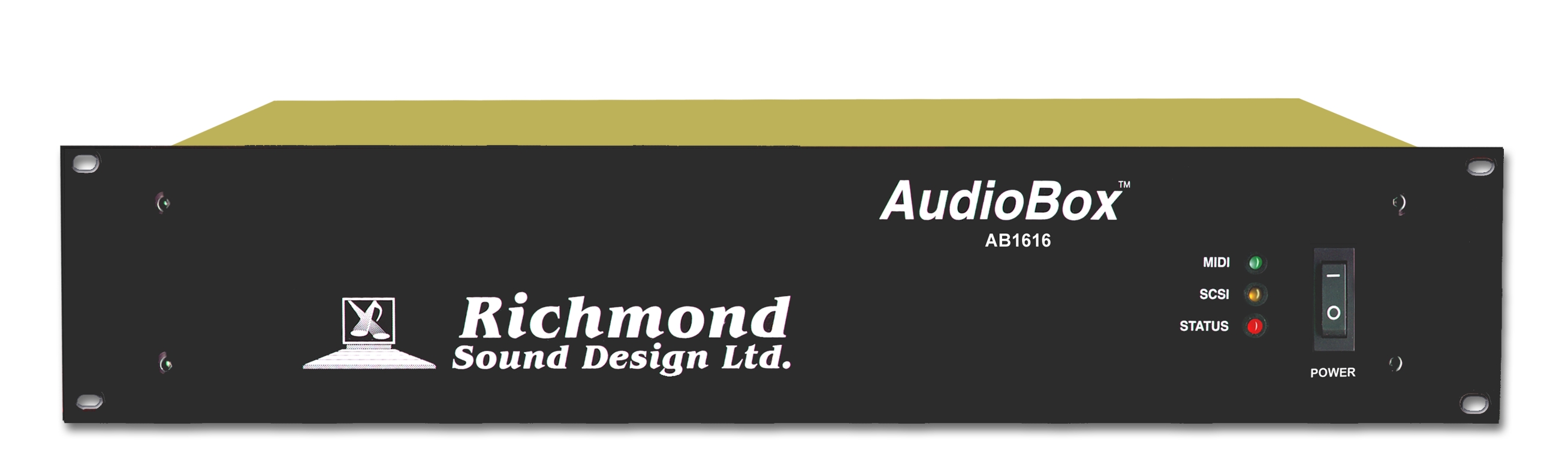

• AudioBox Photograph - Large JPEG File!
• AudioBox compatible Human User Interface Software and Controllers
• Free ABedit Windows Software for the AudioBox
• Download Free AudioBox Software
• AudioBox MiniCAD symbols

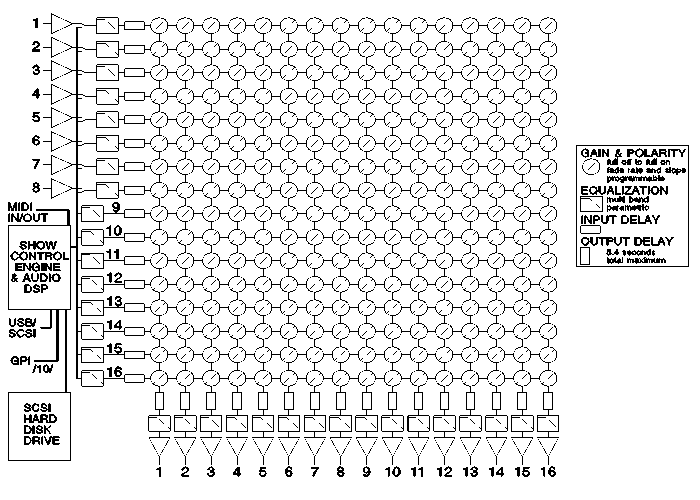

AudioBox AB1616 Signal Flow Diagram

AudioBox AB1616 Block Diagram

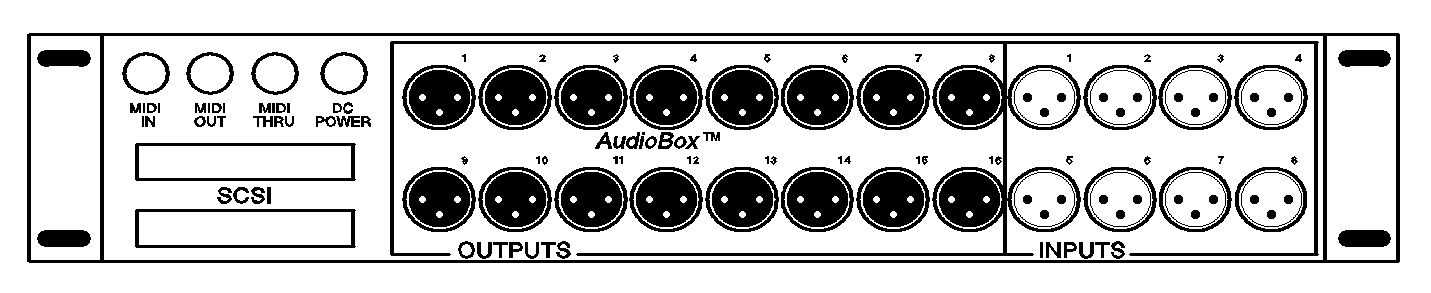

AudioBox AB1616 Rear Panel Layout - 2U High Rack Mount

AudioBox AB1616 Back Panel
Chassis HWD: 3.5x19x10.6 inches/9x48x27cm Weight: 6.5lbs/2.8kg

AudioBox AB1616 Audio Specifications

• ANALOG INPUTS: Eight female XLR, 15k ohm, +20dBu max, CMR 60dB typical, electronically impedance balanced
• DIGITAL INPUTS: SCSI/USB port for transfer of digital audio and show files and high speed control and monitoring
• HARD DRIVE: Standard SCSI for storage of system cues/presets and up to 16 channels of synchronous and randomly accessible (to sample specific time values) simultaneous digital audio playback
• NUMBERED AUDIO SELECTIONS: 8000
• PLAY/STOP/RESUME RANDOM ACCESSIBILITY: Synchronous, 48000 sample per second, specific
• TRACK-HOURS OF AUDIO STORAGE: Approximately 3 per GigaByte of hard drive size
• MAXIMUM HARD DRIVE SIZE: 3 TeraBytes
• ANALOG OUTPUTS: Sixteen male XLR, 600 ohm, +20dBu max, electronically impedance balanced
• CONVERTERS: 20 bit linear 4th-order delta-sigma at 48kHz sampling frequency
• FREQUENCY RESPONSE: +/-0.3dB from 20Hz to 20kHz
• THD+N: Better than -95dB, unity gain, 1kHz, unweighted, 22Hz - 22kHz
• DYNAMIC RANGE: 102dB, unweighted, 22Hz - 22kHz
• EQUALIZATION: Assignable up to 12 band true parametric on any input and output
  Total EQ budget 96 bands
• IN/OUT DELAY: 0 to 5.4S in 1/100th frame increments - total delay budget 5.4S
• SYSTEM DELAY: 1.4mS
• CROSSTALK: -95dB between inputs (terminated) 10kHz +18dBu
• CONTROL PORTS: MIDI IN, MIDI OUT, MIDI THRU, SCSI, GPI IN
• POWER INPUT: 100-240VAC/12VDC +/-5%
• GPI I/O: 25 pin female 'D' connector for cue address/trigger of up to 255 specific cues
• USB OPTION: USB interface as well as SCSI
• RIDE ATTRACTION VEHICLE VERSION OPTIONS:
  Ruggedized chassis/solid state hard disk drive for up to 15G shock and vibration/output relays. Please contact RSD for quote.
