AudioBox II HLX Series

Hundreds of Shows
Thousands of Cue Lists
Hundreds of Thousands of Paths
Millions of Cues
Many Millions of MIDI Messages
It's A Show Controller --- It's A Sound Controller

• HLX-2200
• HLX-4300
• HLX-6300
• HLX-18400
• HLX Series Show Controller Description
• Show Control Specifications
• Audio Specifications
• Compatible Human User Interface Software and Controllers
• Free ABShowMaker Macintosh software for the AudioBox II
• Free SoundMan-Designer Windows Software for the AudioBox
• Pricing

AudioBox II Model HLX-2200

AudioBox II Model HLX-2200 - Rear View
2U Rack Mount Chassis, Weight: 21 kg (45 lb), Depth: 66cm (26 in)

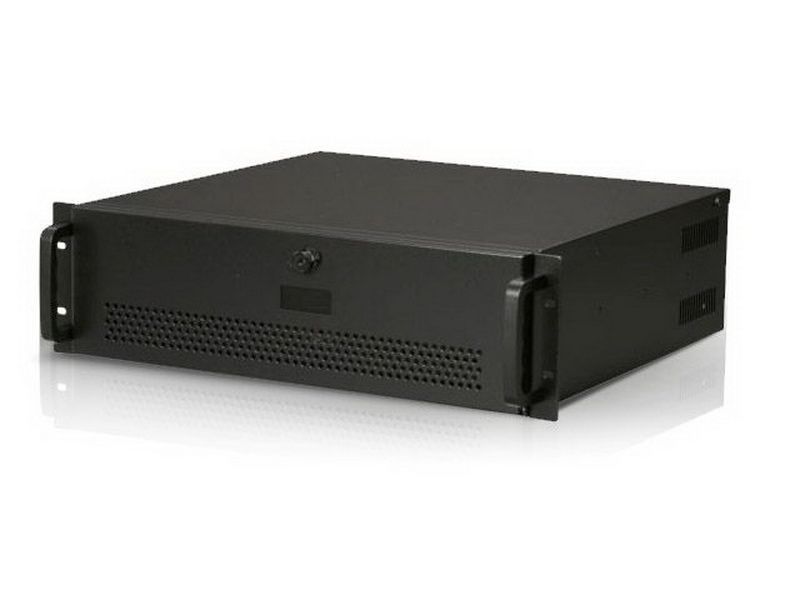

AudioBox II Model HLX-4300

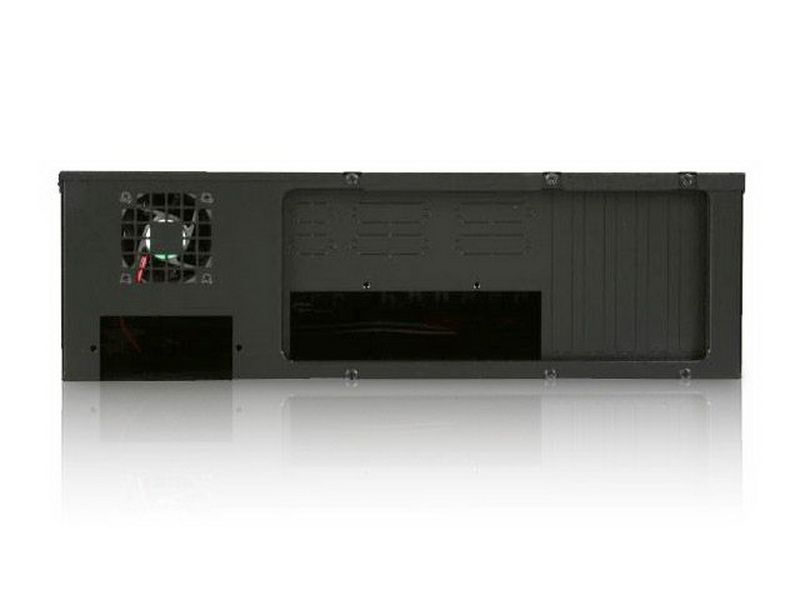

AudioBox II Model HLX-4300 - Rear View
3U Rack Mount Chassis, Weight: 23 kg (50 lb), Depth: 39cm (15 in)

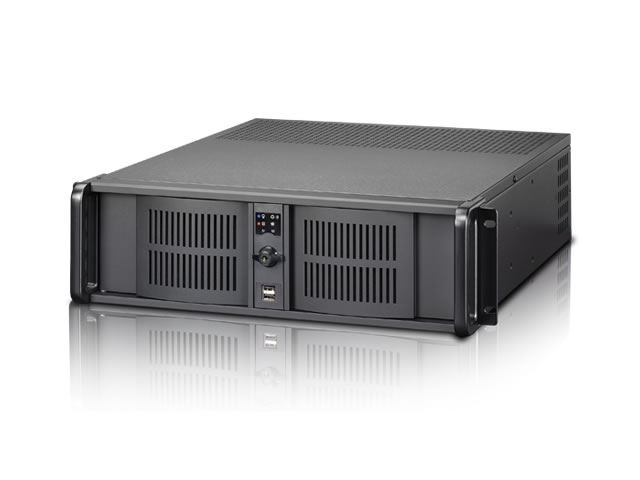

AudioBox II Model HLX-6300

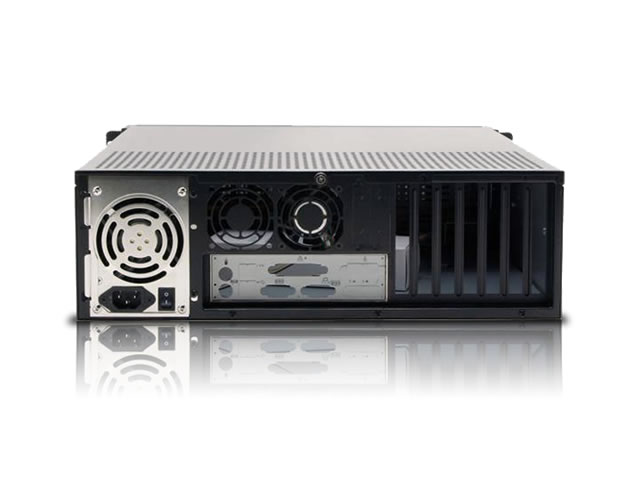

AudioBox II Model HLX-6300 - Rear View
3U Rack Mount Chassis, Weight: 26 kg (55 lb), Depth: 54cm (21 in)

AudioBox II Model HLX-18400

AudioBox II Model HLX-18400 - Rear View
4U Rack Mount Chassis, Weight: 30 kg (65 lb), Depth: 67cm (27 in)

A server class rack mount computer with SoundMan-Server, ShowMan & E-Show software & industry standard audio and digital I/O cards from a huge variety of choices, and solid state or mechanical hard drives.

The SoundMan-Assistant onboard cue engine replays massive sound cues while exporting any MIDI commands in the cues and actuating GPIO contact closures depending on digital I/O. Eight independent cue lists with complete MSC timing allow cues to vary with show timing or human interactivity.

Free ABShowMaker Macintosh software provides exhaustive programming and control capabilities for any number of shows. Use any popular MIDI Sequencer to create complex MIDI compositions, capture them and place them in cues on the AudioBox II HLX Series.

Free SoundMan-Designer Windows software provides exhaustive programming and control capabilities for any number of shows. Use any popular MIDI Sequencer to create complex MIDI compositions, capture them and place them in cues on the AudioBox II HLX Series.

The AudioBox II HLX Series accepts MIDI Show Control commands from a wide range of Human-Machine Interfaces . Optional GPIO inputs trigger up to 255 cues with random access capability.

• GPIO: dependant on choice of digital I/O cards and E-Show software
• CONTROL NETWORK CONNECTION: 10/100Mb/Sec RJ45 ethernet port for transfer of randomly accessible show files and high speed control and monitoring using up to four host computers on a single LAN
• CONTROL PORTS: dependant on choice of digital I/O cards
• POWER INPUT: 100-240VAC, 850W maximum
• GPIO: dependant on choice of digital I/O cards
• COOLING: Panasonic fans.
